Category

Description

Unit

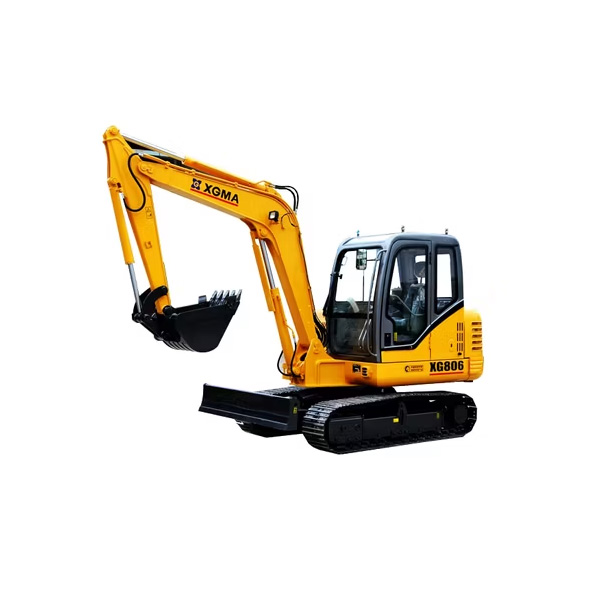

XG806F

XG808F

Basic parameters

Standard bucket capacity

m³

0.21

0.3

Operating Weight

t

5.85

8.1

Engine Brand

–

Kubota

Kubota

Engine Model

–

V2607-DI-T-E3B

V2607-DI-T-E3B

Piston displacement

L

2.615

2.615

Maximum drawbar pull

Nm/rpm

225.8/1600

225.8/1600

Rated power/speed

kW/(r/min)

43/2000

43/2000

System Operating Pressure

Implement Circuits

MPa

24.5

27.5

Swing Circuits

MPa

23

20.6

Travel Circuits

MPa

21

27.5

Maximum Rated Flow of main pumps

L/min

144

206

Average Ground Pressure

kPa

32

34.5

Working Range Parameters

Boom

mm

3000

3720

Arm

mm

1600

1620

Maximum Digging Radius

mm

6100

6325

Maximum Digging Depth

mm

3820

4160

Maximum Vertical digging depth

mm

3200

3550

Maximum digging height

mm

5750

7160

Maximum dumping height

mm

4100

5080

Max. excavating force (arm/bucket)

kN

33.8/45

40/55

Performance parameters of the whole machine

Travel Speed (high/low)

km/h

4.5/2.5

5.1/3.2

Grading capacity

° / %

35°/70%

35°/70%

Max. traction

kN

56

61

Noises at driver location

dB(A)

77

73

Overall dimensions

Overall dimensions (L × W × H)

mm

5900 × 2000 × 2680

6080 × 2222 × 2600

Track Gauge

mm

1600

1750

Minimum Foreside Swing Radius

mm

2325

1690

Minimum Tail Swing Radius

mm

1710

1750

Hydraulic Oil Filling Capacity/Hydraulic Oil Tank Capacity

L

100/120

88/107

Fuel Tank Capacity

L

100

135
